| 브랜드 이름: | customized |
| 모델 번호: | 프로젝트 파일에 따라 |
| 모크: | 토론하기 위해 열립니다 |
| 가격: | open to negotiate |
| 지불 조건: | t/t |
| 공급 능력: | 100,0000 PC |

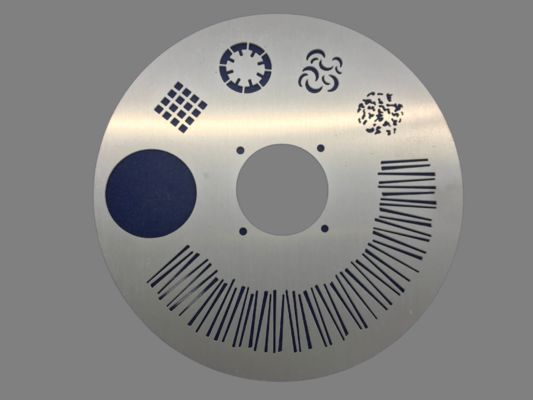

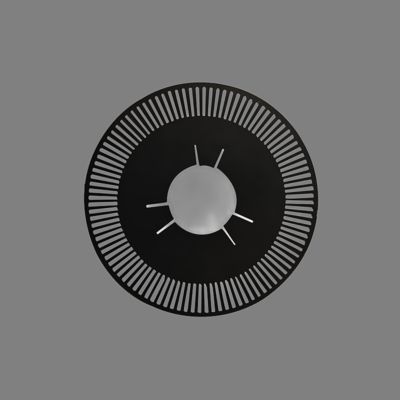

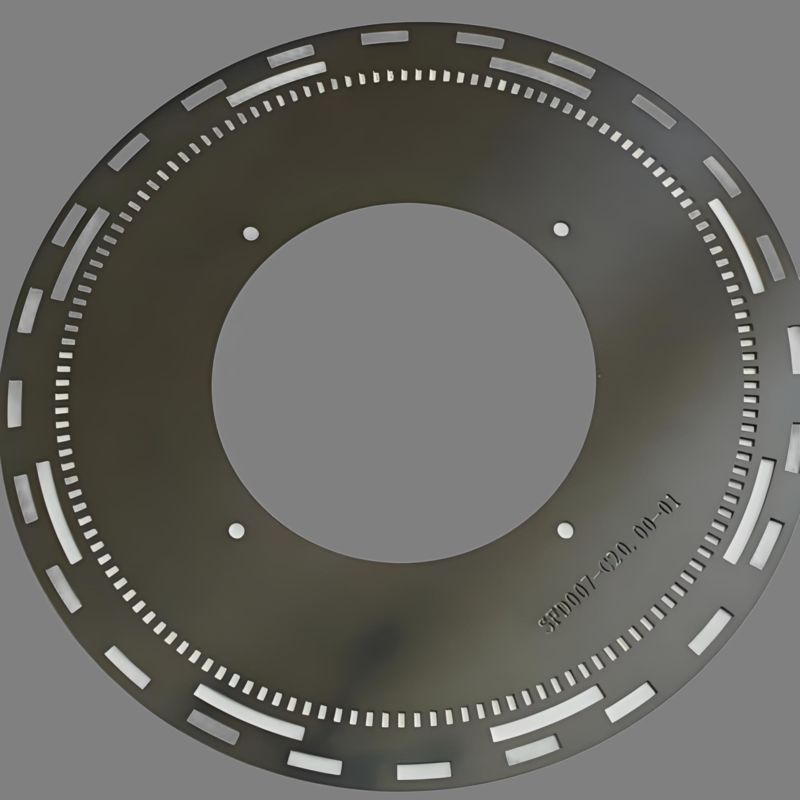

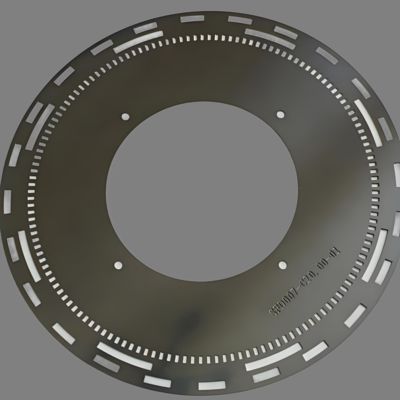

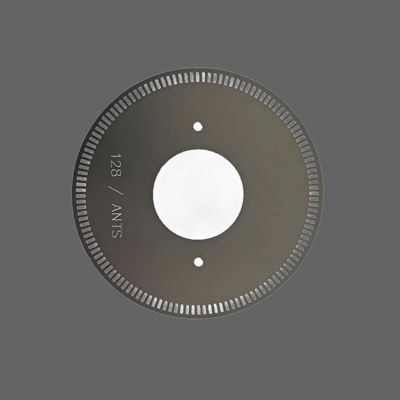

Chemical etching stainless steel encoder disk for optical encoder sensor
Encoder specification:
| Machining Type | photo chemical etching stainless steel precision optical encoder disk |
| Material Capabilities | Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm) |
| Product Dimension | 220*280 mm |
| Product precision | 0.01 |
| Smallest open hole | D= 0.1mm when Thickness range from 0.03mm to 0.05mm 1.5*Thickness |
| Centre to Centre for holes | 1.5*Thickness |
| Surface treatment | Surface treatment |
Photo Etching is flexible, highly accurate and effective at any volume. The photo etching process is known by many names, including chemical etching, acid etching and photo chemical machining (PCM).
Metal Selection
Xinhaisen offer a huge range of metals for etching including: Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others.
Benefits of Photo Etching
